PRODUCTS

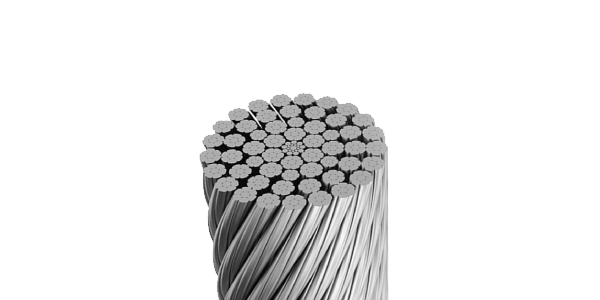

CABLES
Cables are one of the main components which are often overlooked. We spent a lot of time seeking out the best cables that would suit each site,cables that guarantee a minimal wear coefficient and the highest standard of safety.
We use only certified, galvanized and twist-resistant cables from world’s best production companies. This allows us to build longer spans.The cables require little maintenance and last on average 10 years or more in a temperature range from -20 to +50 °C.

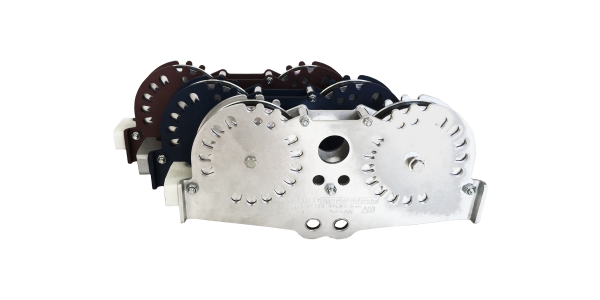

PULLEYS
Vertical Rides offers two different World Class magnetic pulleys for world's steepest and most attractive zipline rides. Our unique magnetic pulleys are designed for high performing zipline rides with 100% safety.
more

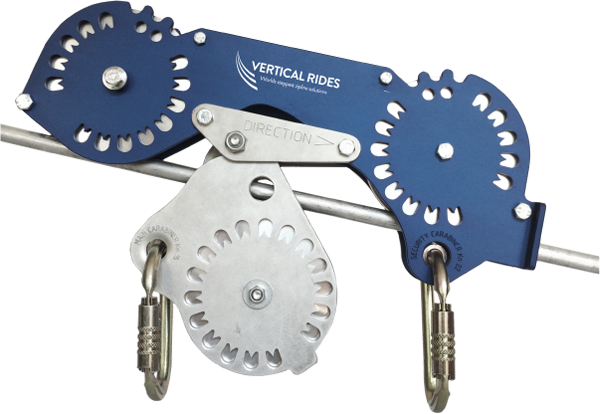

POWER PLUS PULLEY
- aluminuim frame
- max. slope 60%, max.averige slope 40%
- max. arrival slope 23%
- max. speed 150km/h
- weight 30 – 120 kg
Relations between lenght and slope
| ZIPLINE LENGHT |
ALTITUDE DIFFERENCE | CAPACITY (max. P/h) |
|
| IN m | IN % | ||
| 100m | 10-26m | 10-26% | 50 |
| 200m | 20-56m | 10-28% | 40 |
| 300m | 30-105m | 10-35% | 40 |
| 400m | 40-144m | 10-36% | 40 |
| 500m | 50-185m | 10-37% | 35 |
| 600m | 60-228m | 10-38% | 32 |
| 700m | 70-266m | 10-38% | 25 |
| 800m | 80-304m | 10-38% | 25 |
| 900m | 90-352m | 10-39% | 22 |
| 1000m | 100-400m | 10-40% | 20 |
Riders weight (from 30-125 kg)

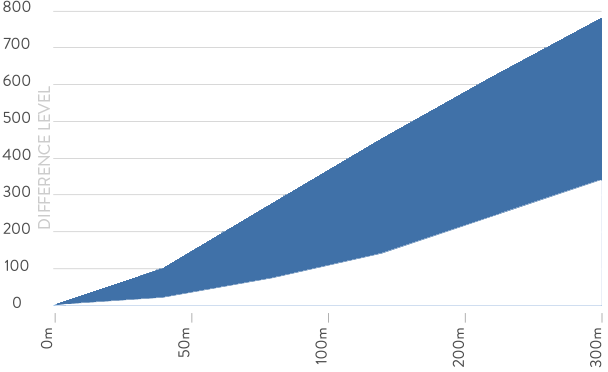

Power pulley working area *Cable slope at the bottom station (min. 6%, max. 23%)

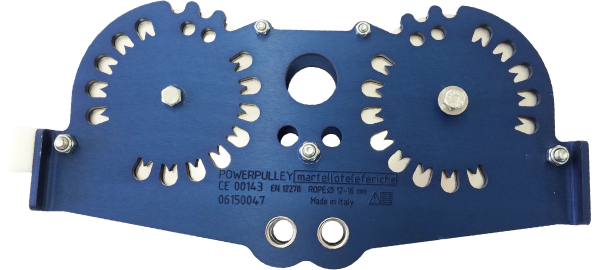

POWER PULLEY
- aluminuim frame
- max. slope 50%, max.averige slope 32%
- max. arrival angle 24%
- max. speed 150km/h
- weight 30 – 130 kg
Relations between lenght and slope
| ZIPLINE LENGHT |
ALTITUDE DIFFERENCE | CAPACITY (max. P/h) |
|
| IN m | IN % | ||
| 250m | 10-50m | 4-20% | 40 |
| 500m | 20-100m | 4-20% | 35 |
| 1000m | 73-277m | 7-28% | 30 |
| 1500m | 140-453m | 9-30% | 25 |
| 2000m | 240-620m | 12-31% | 22 |
| 2500m | 340-780m | 13-32% | 20 |
Power pulley working area *Cable slope at the bottom station (min. 4%, max. 7%)

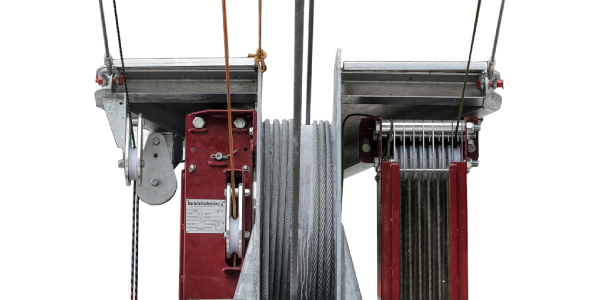

DYNAMIC BREAKING SYSTEM
The Dynamic Breaking System (DBS) was developed to target a high number of riders with 100% safe system: the redundant brake and dynamic automatic coupling that brings the rider onto the platform greatly improves the efficiency of the system.
DBS is fully automated and comfortable which means that activation of the break happens automatically depending on the rider's weight and landing speed without bouncing.
The DBS braking system is designed to automatically reset after each ride, so as to be ready for a new launch with no need for operator intervention.

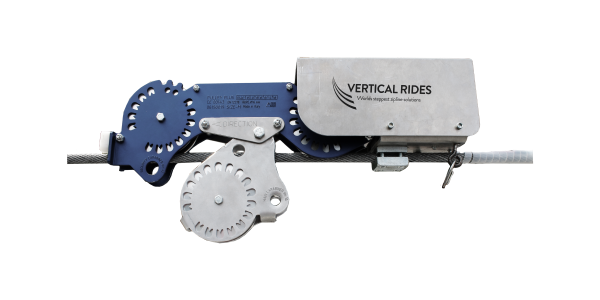

VERTICAL RIDE LAUNCHERS
Before the ride operator has to connect the pulley to the Vertical Ride launcher that is mounted at the start of each zipline. This allows that your staff can use both hands during the client’s safety procedure, avoiding departure failures. Vertical Ride launcher comes with red/green light magnetic signalization that prevents human errors and/or zipline collisions. In case of parallel lines this system can be synchronized.

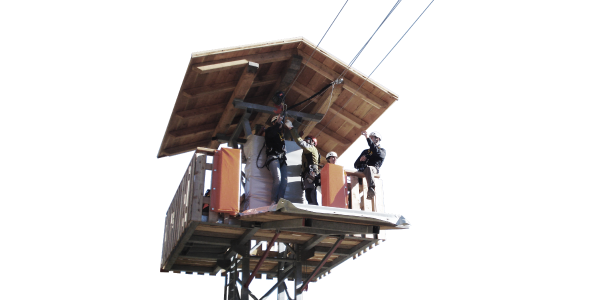

STATIONS
The main advantage of Vertical Rides platforms is that they require minimal maintenance. On top of that, the structure is modular and can be adapted to all types of Zipline: parallel, single, overlapping cable or multi-cable. We aim for designs inspired by nature and the surrounding environment, which also respond to customer needs. We set no limits on the type of request, and stations can be customised with a wide range of options. The platform is designed in sections for easy transport. The framework of each platform is made of galvanized steel by ISO 9001, Exe 1 with certified welding.

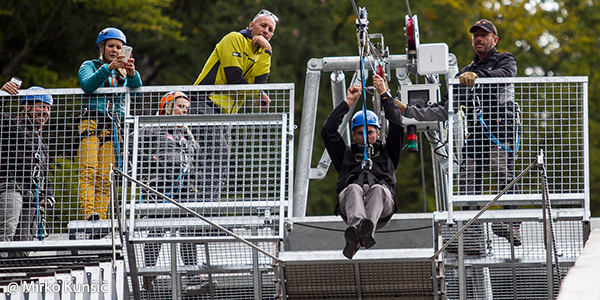

PERSONAL PROTECTIVE EQUIPMENT (PPE)
We use and deliver certified personal protective equipment (PPE) to provide safety with the best experience and comfort on all Vertical Rides installations. We deliver Petzl, Black Diamond and Kong products.
more

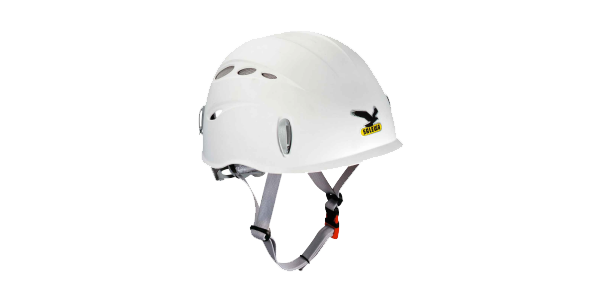

HELMETS
Our current offering of helmets includes comfortable, lightweight, quick and simple to adjust helmets in diffrenern colours. These helmets play an essential role as safety equipment for our ziplines.

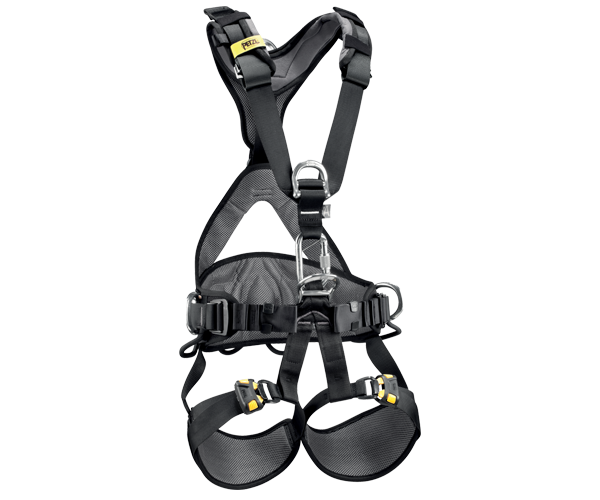

HARNESSES
A good harness is one of the key elements for a safe and comfortable ride. All our harnesses are easy to maintain and user-friendly with numerous accessories for different zipline options.

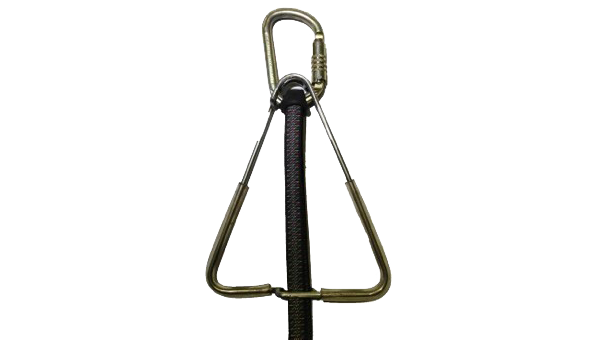

PROTECTIVE HANDLEBAR
For a perfect and safe ride we use light weight and compact handlebars which prevent rotations.

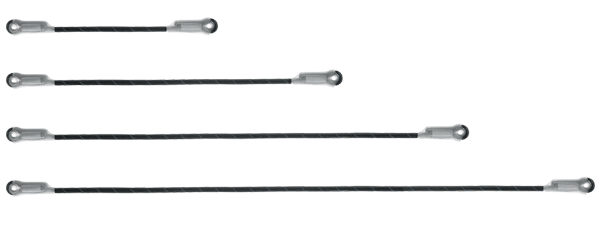

LANYARDS
For comfortabe positioning and as an energy absorber that limits the force transmitted to the user we offer a complete line of lanyards for different applications.

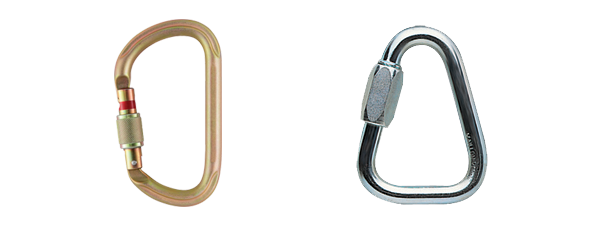

SAFETY LOCKS
All equipped with the special keylock system,carabiners come in different shapes and sizes to meet a variety of usage we need. When you pick up our selection of carabiners, you can feel the high level of quality and craftsmanship.
ALL WEATHER CONDITIONS
Due to tha fact that your zipline adventure can be installed in very different enviroments we guarantee that our zipline equipment can be used in all kind of weather conditions like rain or snow conditions as well as in a broad range of temperatures from -20º to +40ºC.
more
Our patented pulleys have special design and coating that prevents sliding or so called aqua planing.
With such a range of weather possiblities your zipline can always satisfy your customers with amazing scenery ranging from hot summer days to perfect winter rides over powder slopes.
SPEED CONTROL
For safe zipline adventures and amazing experiences we provide patented Power and Power Plus Pulleys with integrated magnetic breaks which are controlling speeds up to 150 km/h with 100% safe breaking systems.
more
The biggest engineering challenge was always how to control the speed over very steep zipline decents where we would be able to offer safe and comfortable landing.
In last couple of years we devoted our time and energy to develop unique zipline equipment that enables world's steepest comercial zipline rides and for the first time we can offer perfect solutions for most demanding and thrilling decents like Planica Zipline (lenght: 566m, drop: 202m, averige slope:38%, maximum slope: 60%) which gave us endless posibilities and solutions for Ski Resorts, Ski Jumping Hills, Amusement Parks, etc.
WE CAN DO IT!
If you are looking for a commercial zipline installation we can offer different zipline products that would suit your needs.
We always strive to solve our clients needs and come up with the best solution that would give uncomparable excitment and optimal ROI for investor.
We have great solutions for Ski Resorts, Water Parks, Amusement Parks, ... that are optimizing capacity volumes of your existing infrastructure in every season and no matter what are the weather conditions.
more
We can offer diffrerent zipline options like:
- Single Rides
- Superman Rides
- Paralell Rides
- Gravity Zip Rides (up to 4% slope)
- Power Rides (up to 22% slope)
- Power Plus Rides (up to 40% slope)
- Treetop Zipline Attractions
- Base Zipline Attractions
ZIPLINE OPORTUNITIES & PARTNERSHIP
Vertical Rides delivers the whole package from idea to full operational funcionality. Team work between our clients and our team is essential for your satisfaction. We bring together a dedicated, professional team committed to building and operating the highest quality zipline experience.
more
Our technology, experience and expertise in conjunction with the right location, offers an exceptional nature based package. Partnership is the fastest and most professional way to bring these exciting zipline activities to your site.
In Europe we are approached by ski resorts, outdoor adventure parks, water parks, national parks, zoo’s, youth camps, ranches or private land holders about the possibilities of upgrading current facilities with our technology or to assess the viability of new locations for commercial operations.
Does your development need investors or expert direction?
If you’re looking for the safest and most profitable solution, we can guarantee that Vertical Rides is the right answer.
We are also offering different financial and buissines packages.
Please do not hesitate to contact us on +386 41 641 490 or email info@vertical-rides.com.
